How Jacquard Uppers Are Made: Complete Manufacturing Guide

The Basic Structure and Principle of Jacquard Uppers

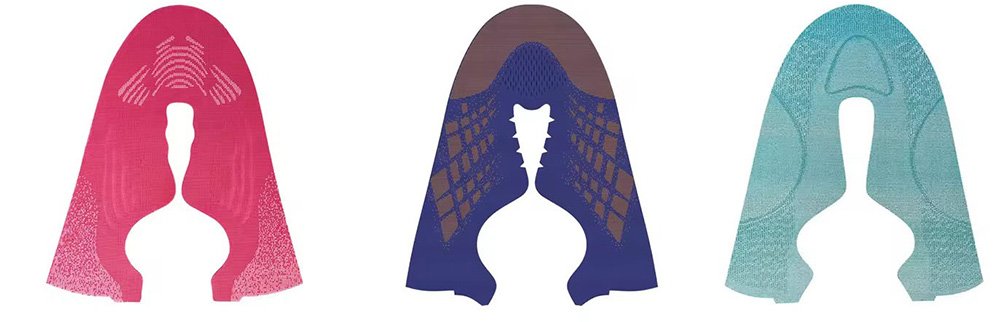

A jacquard upper is a common high-performance shoe material used in athletic shoes and running shoes. It utilizes jacquard weaving technology, which provides a unique structure and functionality. Unlike traditional shoe fabrics, the jacquard upper creates functional regions during the weaving process, offering excellent breathability, support, and design aesthetics.

• The Core Concept of Jacquard Weaving: The jacquard upper technology originates from the Jacquard loom, a type of loom that can independently control the lifting, tension, and interweaving of each yarn. Compared to traditional plain or twill weaving methods, Jacquard weaving allows for the formation of complex patterns and structural regions on the same piece of fabric. By controlling the movement of the yarns, the Jacquard loom automatically creates different functional areas during the weaving process.
• Jacquard Net Fabric vs. Regular Mesh Fabric: Jacquard net fabric differs from regular mesh fabric in its weaving method and structural characteristics. Regular mesh fabric is typically created by punching holes or using heat-press processes, whereas jacquard net fabric forms intricate structural patterns during the weaving process. This method ensures that the patterns are more delicate and durable, without the risk of losing their structure during subsequent processing.
• The One-Step Formation of Upper Structure: The unique feature of the jacquard upper is that it allows for the creation of different functional areas in a single weaving process. For example, the forefoot area may have a looser weave to provide breathability, while the midfoot and heel areas may be woven more tightly for added support and stability. Because this is done during the weaving process, there is no need for complicated post-processing, which greatly improves production efficiency and the stability of the shoe’s performance.
• Flexibility and Precision of Jacquard Weaving: With Jacquard weaving, designers can precisely control the fabric’s density, pore size, elasticity, and breathability. This technology allows for the customized production of uppers based on different needs. For example, running shoes may need more breathability and elasticity, while high-performance training shoes may require more support and durability.
• Functional Area Planning and Implementation: During the jacquard upper weaving process, designers typically plan the functional areas of the shoe based on the shoe’s requirements. For example, certain areas of the shoe may need higher breathability and comfort, while other areas require additional support or protection. Through different yarn configurations and weaving methods, these functional areas can be precisely distributed on the same piece of fabric.

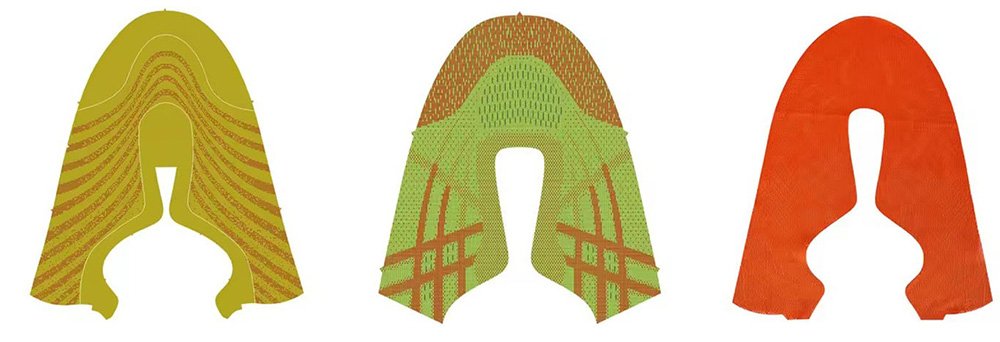

Common Materials and Yarn Configurations for Jacquard Uppers

The production of a jacquard upper depends on carefully selected yarn materials and intelligent yarn configurations. The choice of polyester yarn, nylon yarn, and functional fibers directly affects the performance of the upper.

Common materials include:

• Polyester Yarn: Due to its stability and high tensile strength, polyester yarn is one of the most commonly used yarns for jacquard uppers. Polyester yarn’s abrasion resistance also ensures the durability of the upper.
• Nylon Yarn: Known for its elasticity and toughness, nylon yarn is ideal for areas of the upper that require strength and durability, such as the support regions.
• Functional Fibers: Examples include antimicrobial fibers and moisture-wicking fibers, which are used in certain sport shoes and running shoes to enhance the upper’s breathability and antibacterial properties.

In addition to yarn selection, jacquard uppers often use monofilament perforated structures, which create evenly spaced holes in the fabric to improve breathability. These perforations are not simply punched but are woven with precise control over yarn tension and positioning during the weaving process, ensuring efficient airflow without compromising the strength of the fabric.

The combination of yarns is also a key factor in determining the performance of the jacquard upper. Different yarn configurations in the functional areas of the upper allow for the creation of zones with varying levels of comfort, support, and breathability. For instance, the forefoot area may use breathable yarns, while the midfoot region may incorporate thicker yarns for added support, and the heel area may require additional stability.

Core Production Methods and Complete Process for Jacquard Uppers

Core Production Method

The production of jacquard uppers relies on Jacquard looms, which are high-precision weaving machines capable of controlling the lifting and interweaving of multiple yarns. Compared to traditional weaving methods, Jacquard looms allow for the simultaneous control of multiple yarn movements, ensuring the precise weaving of complex patterns and functional zones on the upper. The core production method for jacquard uppers involves using programmed weaving methods to achieve the desired functionality, such as breathability, support, and comfort.

In this process, yarn selection and configuration are crucial. Different types of yarns are combined to form different regions on the upper. For example, breathable areas may use a looser weave, while support areas are woven more tightly to provide additional structural support. Through this method, jacquard uppers can achieve complex functionality in a single weaving process.

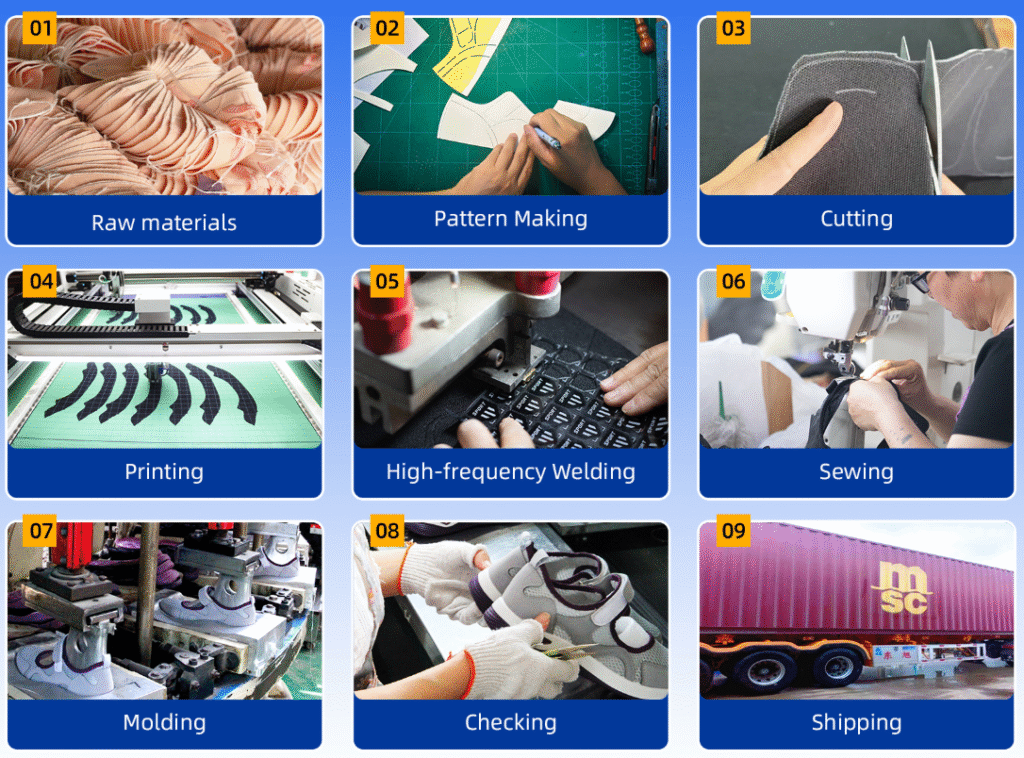

Complete Production Process

1. Design Stage: Functional Area Division and Pattern Design
   During the design stage of jacquard uppers, different functional areas are divided based on the shoe type. Each functional area is designed according to the specific needs of athletic shoes or running shoes, such as breathability, comfort, and support. Designers create patterns with different densities and pore sizes for each area, which are then converted into weaving programs for the Jacquard loom.
2. Weaving Stage: Jacquard Loom Weaving and Function Implementation
   The weaving stage is the key process in jacquard upper production. The Jacquard loom precisely controls the tension and lift of each yarn according to the preset design program. The yarns in different regions are woven into the upper to achieve the desired functionality. For example, the forefoot region uses a looser yarn structure for breathability, while the midfoot and heel regions use denser yarns to ensure support and stability.
3. Post-Processing Stage: Shaping, Cutting, and Quality Control
   After weaving, the upper undergoes shaping and finishing. Heat-setting processes ensure the stability of the upper’s shape and structure, preventing distortion during later use. Additionally, the upper is cut and cleaned to remove any excess threads from the weaving process and ensure a neat final product. During this stage, quality control is critical, and random sampling is conducted to ensure that each upper meets the required standards.

Sandwich Structure and Three-Dimensional High-Density Perforation in Jacquard Uppers

With the continuous advancement of shoe upper design technology, sandwich structure and three-dimensional high-density perforation technologies have been widely applied to the production of jacquard uppers. These technologies effectively enhance the upper’s breathability, comfort, and support.

Sandwich Structure: The sandwich jacquard upper is not simply made by stacking multiple layers but by combining different yarns to form a three-layer structure during the weaving process. The outer layer typically provides appearance and comfort, the middle layer offers support and strength, and the inner layer focuses on comfort and breathability. This structure allows the upper to maintain strength while reducing weight.

Three-Dimensional High-Density Perforation: High-density perforation technology precisely controls the weaving density to create small holes on the upper. These holes not only increase the jacquard upper’s breathability but also adjust the size and distribution of the holes based on the shoe’s functional requirements. For example, running shoes may need more perforations, while training shoes focus on stability and protection.

Quality Control and Testing Methods for Jacquard Uppers

Quality control of jacquard uppers relies not only on precise production processes but also on strict testing and international certification. Ensuring the quality of each upper is not only a commitment to the product but also to the consumer experience.

1. Quality Control System

Each stage of the jacquard upper production requires rigorous monitoring. High-quality manufacturers typically adopt the ISO 9001 Quality Management System, an internationally recognized standard for ensuring that every step of the production process meets strict quality requirements. Manufacturers with ISO certification ensure quality control at every stage, from material selection and production processes to product design and final inspections.

2. Testing Methods

Quality testing during the production of jacquard uppers is essential for ensuring that each shoe meets standards. Common testing methods include

• Tensile Strength Test
• Breathability Test
• Abrasion Test
• Colorfastness Test

3. International Certifications and Standards

Quality assurance for jacquard uppers extends beyond internal quality control to include multiple international certifications, ensuring the product’s competitiveness in the global market. Common certifications include:

• ISO 9001: Quality Management System Certification
• OEKO-TEX® Standard 100 Certification
• BSCI (Business Social Compliance Initiative) Certification

Why Choose to Cooperate with Kaichuang for Producing Jacquard Uppers

Kaichuang was established in 1998 and has 28 years of experience in the production of jacquard uppers. It specializes in the research and production of high-quality jacquard fabrics and jacquard uppers, and has become a leading footwear fabric manufacturer in China, trusted by many brands around the world.

• 28 Years of Experience and Strong Technical Strength: Since its establishment, Kaichuang has focused on the research and innovation of jacquard upper technology, accumulating extensive production experience. The company has a 10,000 square meter production facility and 80 jacquard looms, with an annual output capacity of 15 million pairs. Whether for athletic shoes, running shoes, basketball shoes, or soccer shoes, Kaichuang’s jacquard uppers deliver excellent quality and innovative designs to meet a wide range of footwear needs.
• High-Quality Materials and Durable Performance: Kaichuang’s jacquard uppers are made from high-quality woven jacquard fabrics that are lightweight, breathable, and quick-drying, while also exhibiting strong folding resistance and anti-wrinkle performance. The use of specially designed materials enables the upper to remain breathable and comfortable, making it ideal for high-performance footwear.
• Fast Production and Delivery: Kaichuang adheres to a customer-first philosophy, offering a 12-day rapid prototype development cycle and a sample and blueprint approval period of 7–10 days. This allows customers to quickly review samples and move into production. In addition, Kaichuang’s production cycle is short and delivery punctual, effectively meeting market demands for fast fashion and customized products.
• International Certifications and Quality Assurance: Kaichuang’s facility holds ISO 9001, SGS, GRS, and OEKO-TEX® international certifications, ensuring every batch of jacquard uppers produced meets global standards. Material selections are strictly controlled, meeting OEKO-TEX® Standard 100 requirements to ensure products are free of harmful substances and safe for consumers.
• Customized Services and Innovative Design: Kaichuang not only provides high-quality jacquard uppers but also offers one-on-one customized services. From design concepts to logo integration and rapid sample fabrication, Kaichuang’s design and development team provides innovative solutions tailored to customer needs. With fast production and testing timelines, as well as flexible logistics arrangements, clients can get products to market quickly to meet changing consumer demand.
• Broad Applications and Market Demand: Kaichuang’s jacquard uppers are widely used across footwear categories such as athletic shoes, running shoes, basketball shoes, and soccer shoes. With innovative designs and excellent functional performance, Kaichuang has become a preferred supplier for internationally recognized brands. Whether for comfort, support, breathability, or durability, Kaichuang delivers comprehensive solutions.

Choosing to cooperate with Kaichuang means gaining access to advanced technology, high-quality products, and expedited delivery and customization services. With 28 years of rich experience and strong manufacturing capabilities, Kaichuang can provide top-quality jacquard uppers to help your brand stand out in a competitive market.
